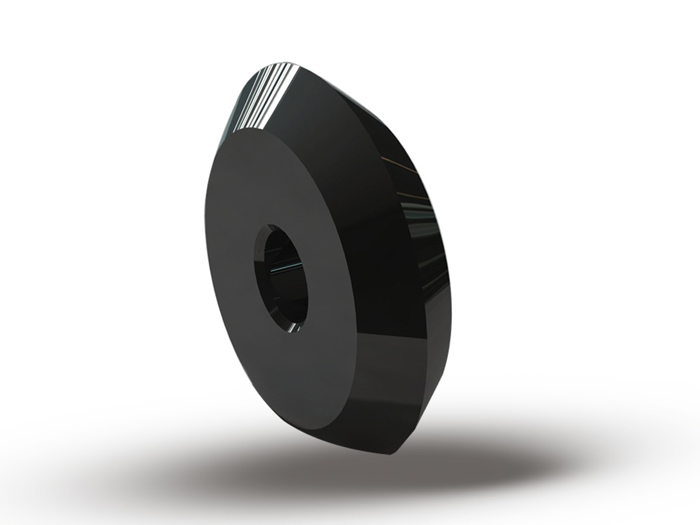

Economical Diamond Scribing Wheel

Description
The economical diamond scribing wheel uses high quality PCD material made by Element Six and Sumitomo. The scribing wheel is made with unique high precision processing technology and the cutting edges of the scribing wheel are processed with a matt finish.

Features
1. The economical diamond scribing wheel revolutionarily lowers the manufacturing cost so that they feature high cost performance.
2. The economical diamond scribing wheel is the ideal substitute for the tungsten carbide scribing wheel. It has a stronger abrasive resistance and its service life is five times that of the tungsten carbide scribing wheel.
3. The economical diamond scribing wheel can cut the ITO conducting film and the glass at the same time when cutting touch screen. It can also be used to cut touch screen made of tempered glass.

Application

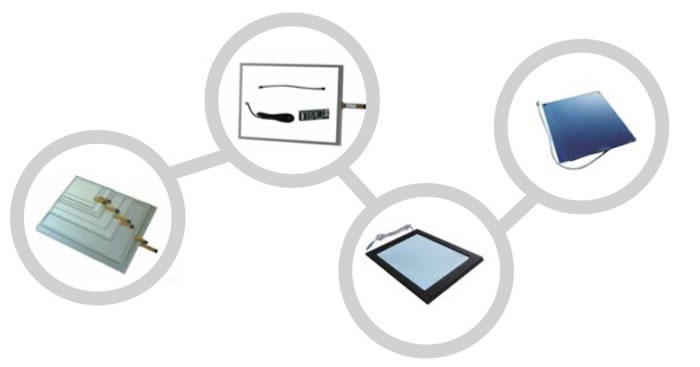

The economical diamond scribing wheel is used in high end LCD production lines, LCD panels, substrate glass, and glass tube of touch screens.

Technical Specifications
Description Specification
OD(mm) ID(mm) T(mm) V(°)
Economical Diamond Scribing Wheel 1.20 0.50 0.40 60-163
2.00 0.80 0.65
2.50 0.80 0.65
3.00 0.80 0.65
3.20 1.20 1.00
4.00 1.30 1.00
5.00 1.40 1.10
6.00 1.50 1.10

Material
The economical diamond scribing wheel uses high quality PCD made by Element Six and Sumitomo.

Packaging
Our economical diamond scribing wheel is packaged in a plastic case.
