Diamond Glass Cutter

Home » Products » Glass Cutting Tools » Glass Cutters » Diamond Glass Cutters

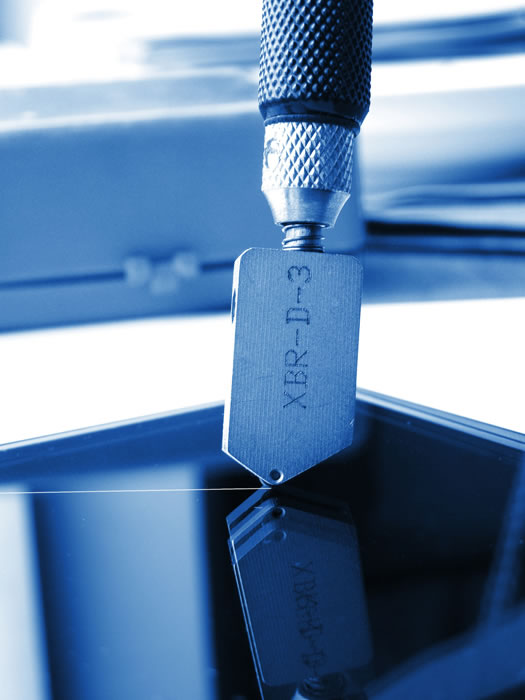

Diamond Glass Cutter

Description
1. A traditional glass cutter often uses an tungsten carbide scribing wheel, while our diamond glass cutter uses a diamond scribing wheel.
2. We design and develop various diamond glass cutters to cut glasses with thicknesses ranging from 0.2mm to 19mm.
3. Our diamond glass cutter has a longer service life than glass cutters with an tungsten carbide scribing wheel. Our diamond glass cutter can cut 100,000 meters of glass.
4. With humanized and scientific design, our diamond glass cutter can be oiled without leakage and can cut glasses smoothly with good cutting quality.

Application
The diamond glass cutter is used on materials with different thickness, such as common glass, constructional engineering glass, glass doors and windows, and mirrors.

Technical Specifications
Typical Parameter
Description Type Cutting Thickness Application
Supower Diamond Glass Cutter XBR-0 0.2-2.0mm Ultra thin Glass, high penetration series
XBR-1 0.5-3.0mm Thin glass
XBR-2 2.0-8.0mm Middle thickness glass
XBR-3 6.0-15.0mm Thick glass
XBR-4 8.0-19.0mm

Material
The diamond glass cutter uses diamond scribing wheels and plastic or metal handles.

Packaging
Our diamond glass cutter is packaged in a plastic case or carton.
