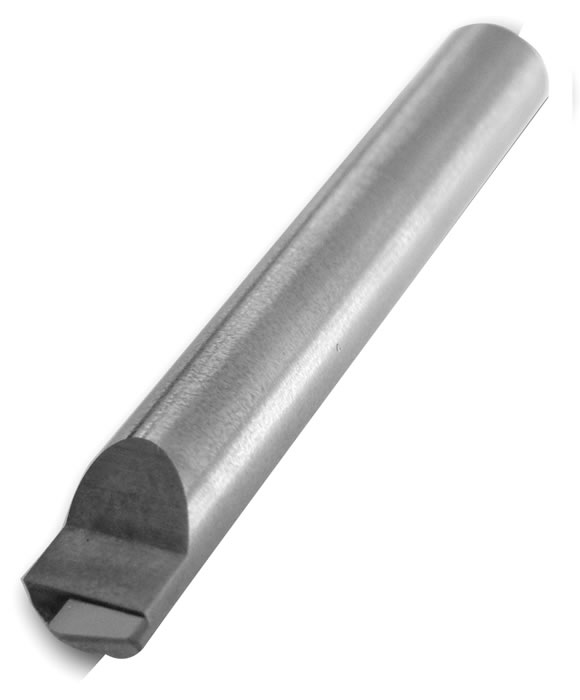

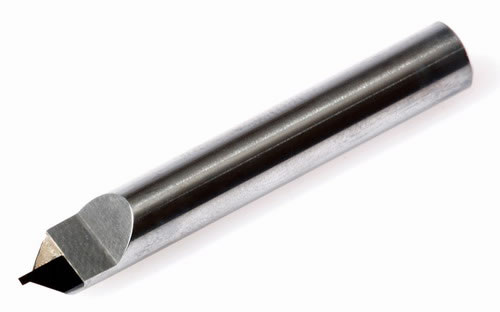

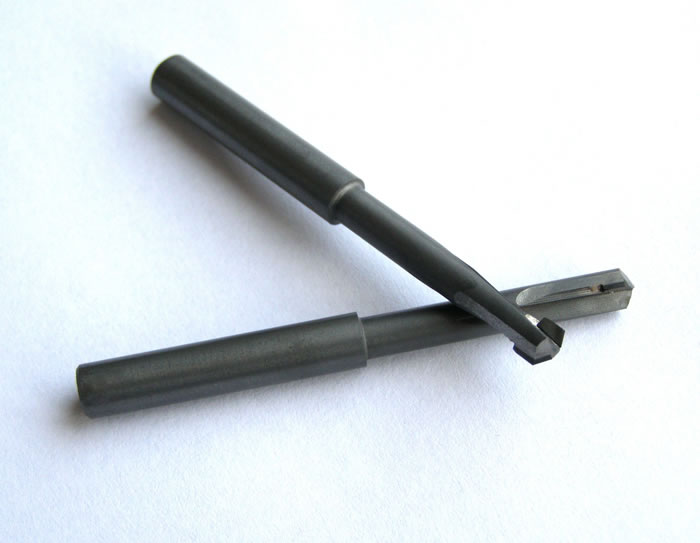

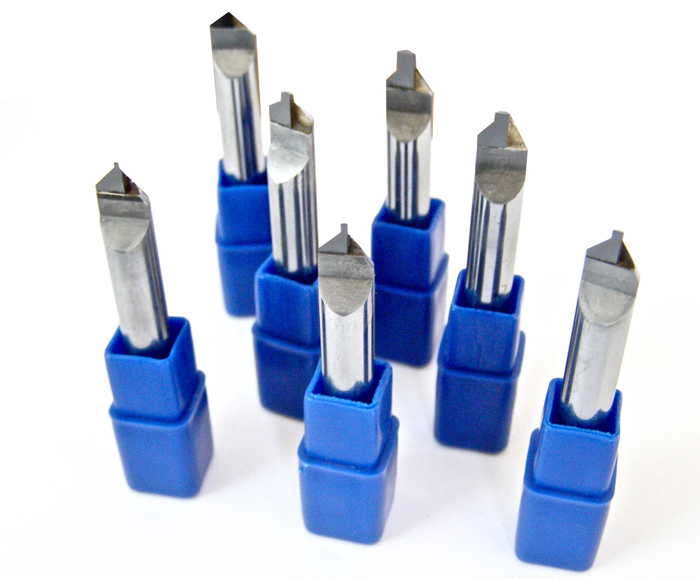

PCD Acrylic Window Bit

PCD Acrylic Window Bit

Features
1. The PCD acrylic window bit features high processing precision.
2. The PCD acrylic window bit has a sharp cutting edge, good abrasive resistance and long service life.
3. The bit has the advantages of stable processing quality, high work efficiency and high cost performance.
4. The products processed by the PCD acrylic window bit are highly polished and free from burr and white edge.

Application

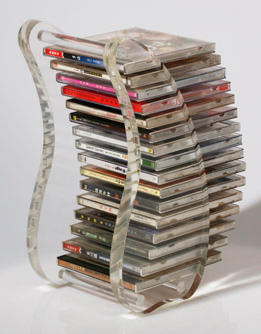

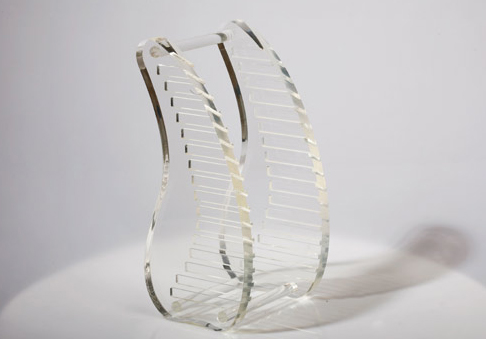

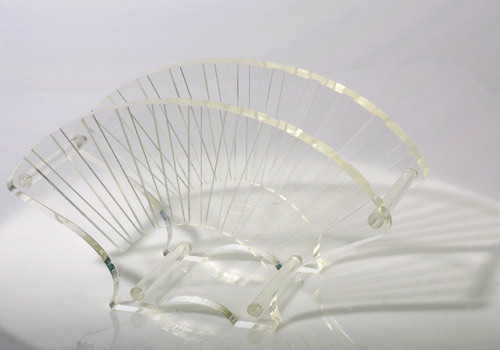

The PCD acrylic window bit applies to various materials, such as PC, PET, glass fiber, carbon fiber, nonferrous metal and acryl. It can be used to process various panels for cellphones, MP3s and MP4s, and to process decorating parts such as photo frames and CD disc holders.

Technical Specifications

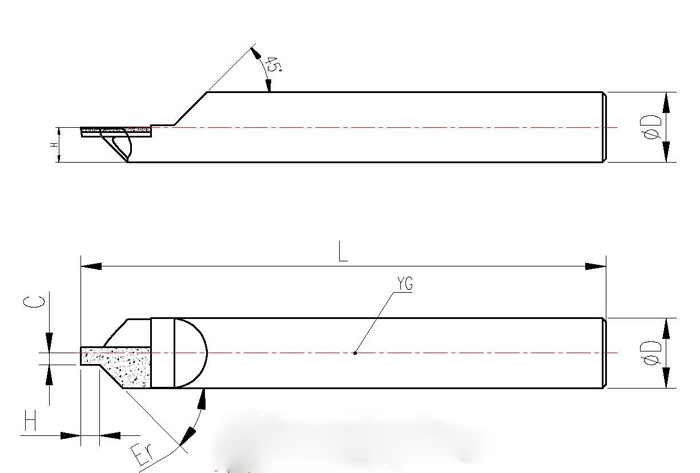

Drawing of PCD Acrylic Window Bit Dimension (mm)
Φd L1 θ° ΦD L
0.8 0.5 30 6 40
1.0 0.6 30 6 40
1.2 0.8 45 6 40
1.5 1.0 45 6 40

Material
The tool bit of the PCD acrylic window bit uses PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The body part uses high quality tungsten carbide.
