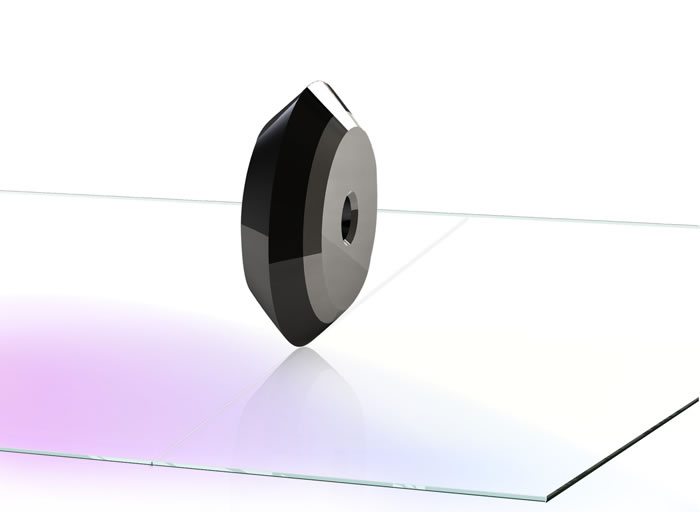

Hybrid Diamond Scribing Wheel

Description
The hybrid diamond scribing wheel uses high quality PCD material made by Element Six and Sumitomo. It is manufactured with unique high precision processing technology and its cutting edge is processed with a matt finish.

Features
1. With unique choice of material, the hybrid diamond scribing wheel has a high cost performance. It is the ideal choice for cutting touch screen.
2. The hybrid diamond scribing wheel has various cutting edges, making it widely applicable. It is suitable to cut glasses made from different materials. The hybrid diamond scribing wheel is the ideal substitute for the tungsten carbide scribing wheel as its service life is three times that of the tungsten carbide scribing wheel.
3. Our hybrid diamond scribing wheel can cut the ITO conducting film and the glass at the same time when cutting touch screen.

Application

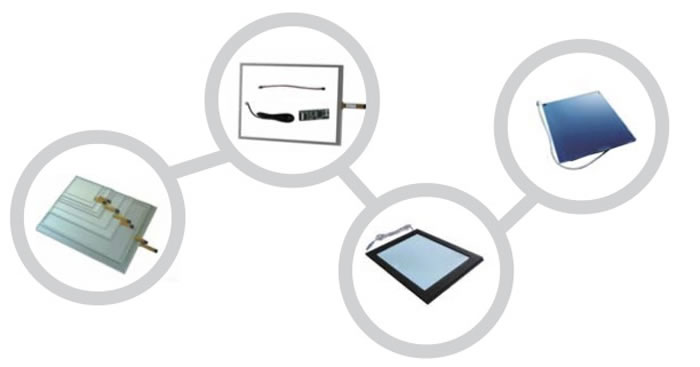

The hybrid diamond scribing wheel is used in high end LCD production lines, LCD panels, substrate glass, and glass tube of touch screens.

Technical Specifications
Description Specification
OD(mm) ID(mm) T(mm) V(°)
Hybrid Diamond Scribing Wheel 1.20 0.50 0.65 60-163
2.00 0.80 0.65
2.50 0.80 0.65
3.00 0.80 0.65
3.20 1.20 0.65
4.00 1.30 0.65
5.00 1.40 0.65
6.00 1.50 0.65

Material
The hybrid diamond scribing wheel uses high quality PCD material made by Element Six and Sumitomo.

Packaging
The hybrid diamond scribing wheel is packaged in a plastic case.
