PCD Stone Engraving Tool (Granite, Marble)

Features

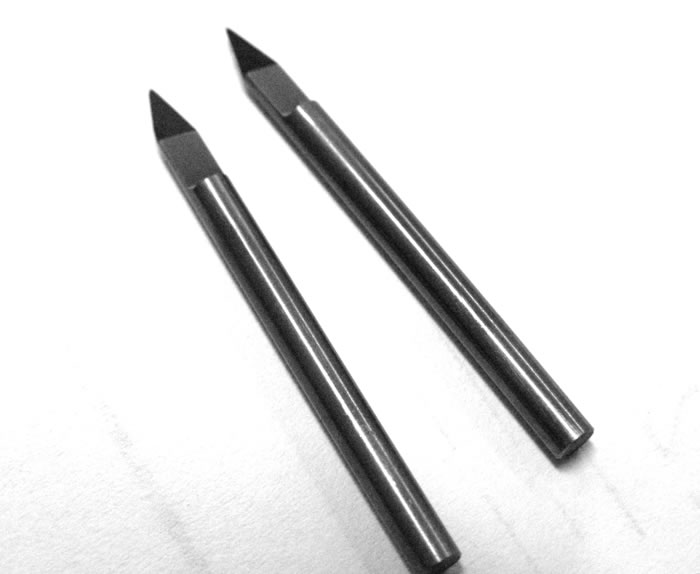

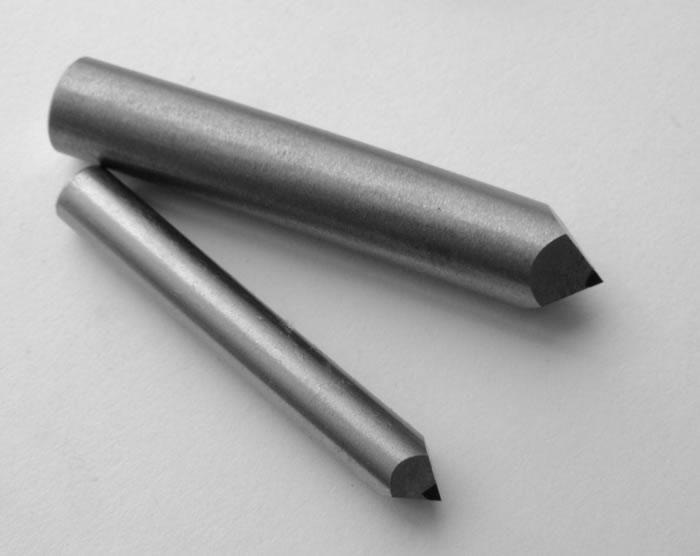

1. The center sharp knife of the PCD stone engraving tool features long service life and good adaptability. It is particularly suitable to engrave granite and ceramic. Its maximum engraving depth can reach 1mm.
2. The flat bottom knife is used to engrave characters with smooth edges. The size of the engraving characters ranges from 3cm to 8cm. The knife features fast engraving speed and long service life. Its maximum engraving depth can reach 4mm.

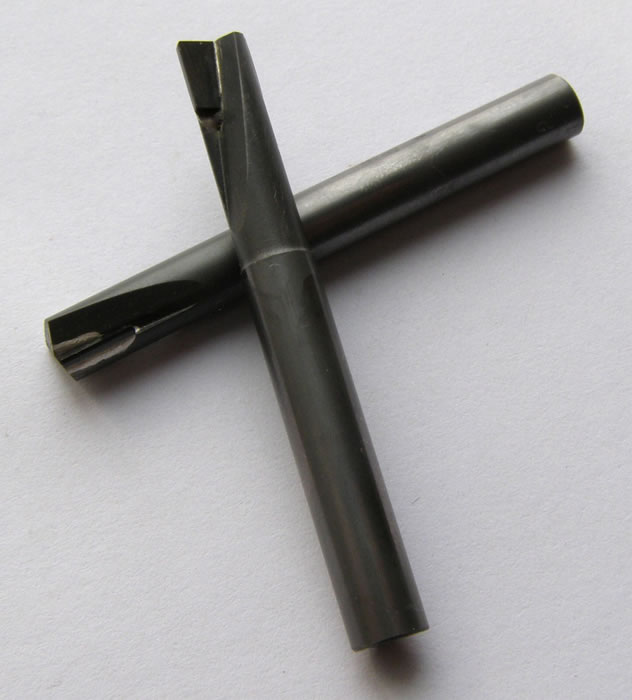

3. The milling bedplate cutter can mill the groove at the bottom of the engraving picture. The milling cutter features fast processing speed and high work efficiency. You can choose milling bedplate cutters of different sizes according to the size of the processing surface. The recommended engraving depth of the milling cutter is 2mm.

Application
The PCD stone engraving tool is used to engrave pictures or characters on granite, marble and ceramic.

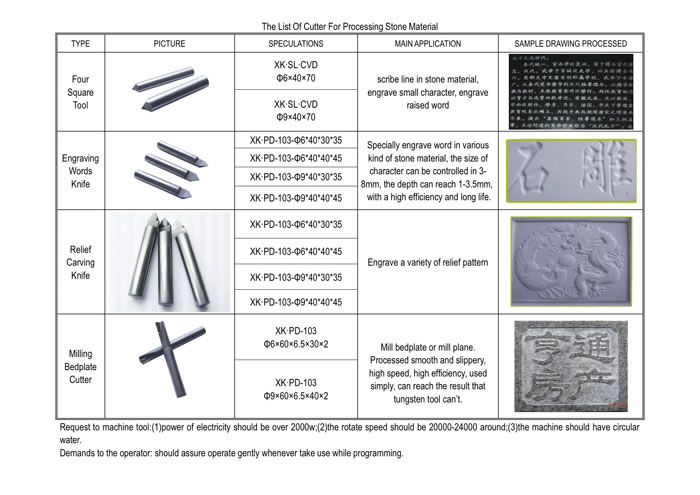

Technical Specifications
Description Specifications Remarks
Center Sharp Knife XK SL CVD ¢3.175*40*60 Scribe line in stone material, engrave small characters, engrave raised words. Material Body: Tungsten Carbide Tip: CVD Diamond
¢6.0*40*70
¢9.0*40*70
Flat Bottom Tool (Engraving words) (Relief carving) XK PD ¢3.175*40*45 Particularly engrave words in various kinds of stone material. The size of the characters can be controlled in 3-8mm. The depth can reach 1-3.5mm. High efficiency and long service life. Material Body: Tungsten Carbide Tip: PCD Diamond
¢6*40*35
¢9*40*35
Milling Bedplate Cutter (Double tips) ¢6*60*6.5*30*2 Mill bedplate or mill plane. Processed smooth and slippery, high speed, high efficiency, simple use. Material Body: Tungsten Carbide Tip: PCD Diamond
¢9*60*6.5*40*2
¢12*60*6.5*40*2

Material
The tool bit of the PCD stone engraving tool uses PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The body part uses high quality tungsten carbide.
