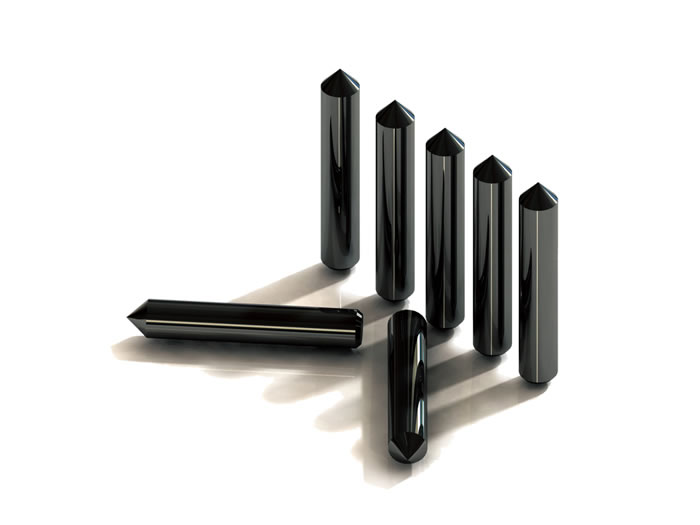

Diamond Axle

Features
1. The diamond axle features high precision. The precision of its abrasive resistance, cylindricity, diameter and length has been strictly examined.
2. The strong suitability of the scribing wheel and the axle reduces the friction between them.
3. The diamond axle has long service life. It can also prolong the service life of the scribing wheel.
4. The diamond axle can guarantee stable cutting quality.

Application
1. The diamond axle is suitable for diamond scribing wheels of different specifications.

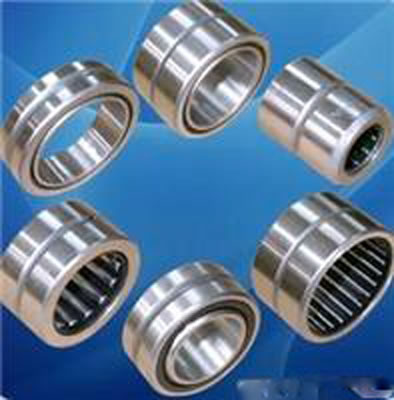

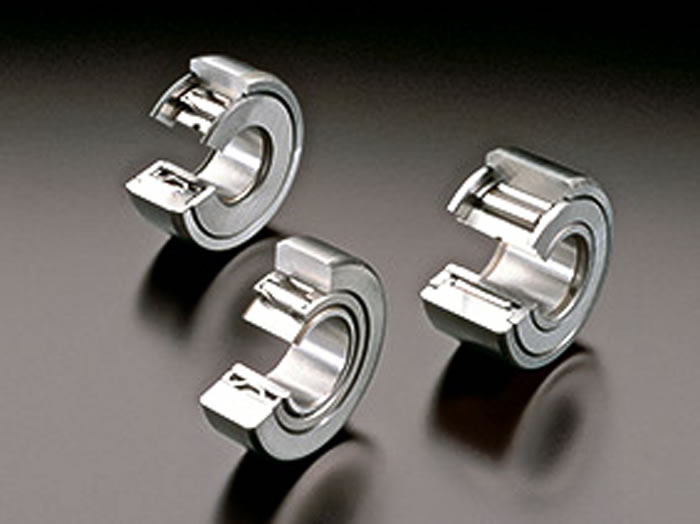

2. As a kind of high precision wear resistant part, the diamond axle can be used in precision mechanical equipment including high precision bearings, high precision instruments and intelligent robots.

Technical Specifications
Description Specification
D(mm) L (mm) A(°) a(°) Coaxiality (μm) Cylindricity (μm) Roughness (μm)
Diamond Axle 0.80 0.50 120 45 5.00 2.00 0.20
1.00 0.80
1.10 0.80
1.20 0.80
1.30 1.20
1.40 1.30

Material
The diamond axle uses high quality PCD made by Element Six and Sumitomo.

Packaging
The diamond axle is packaged in a plastic case.
