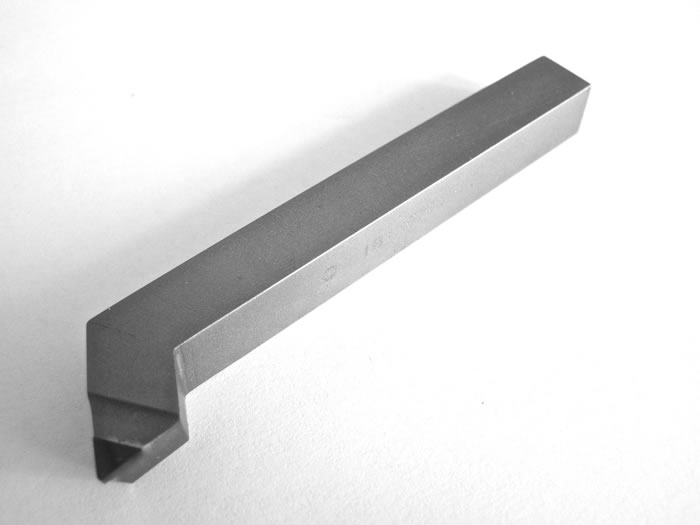

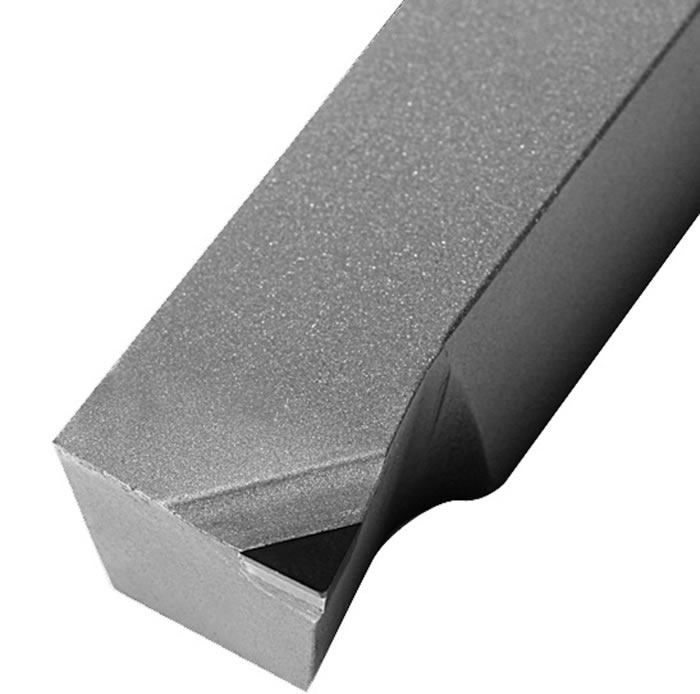

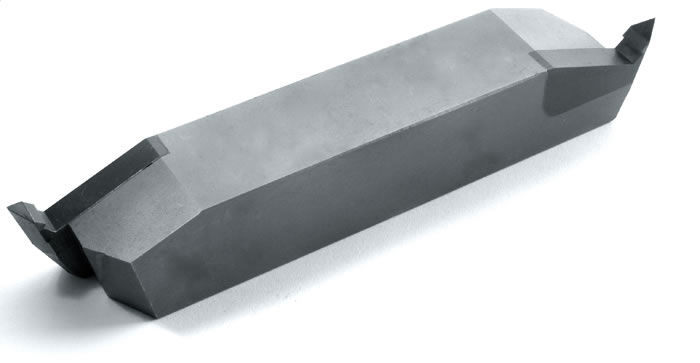

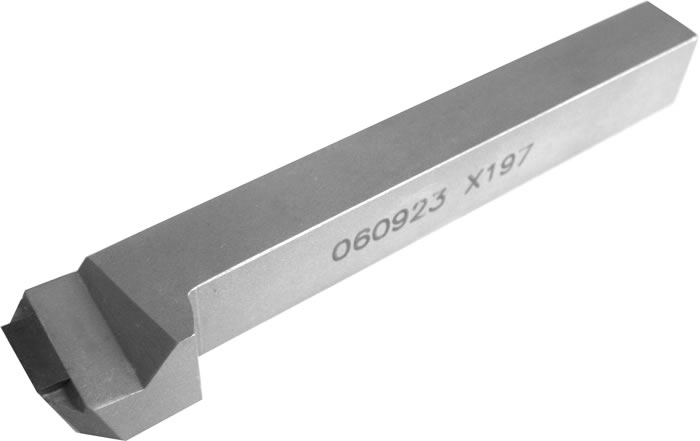

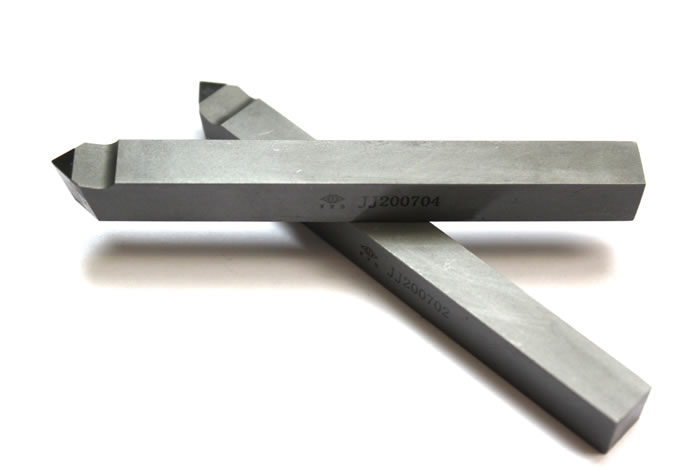

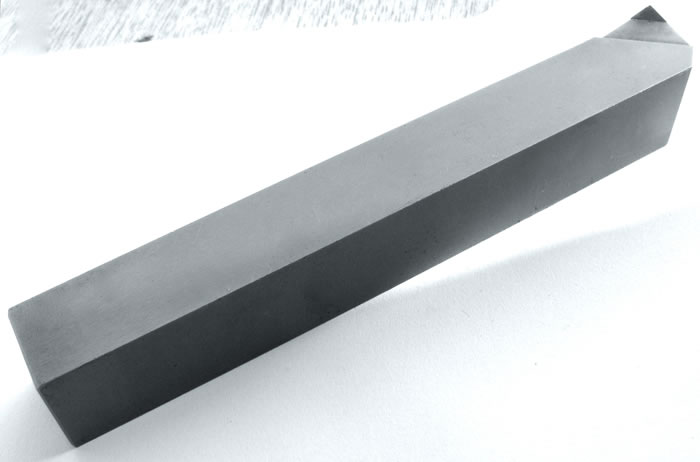

PCD External Turning Tool, PCBN External Turning Tool

Features
1. The external turning tool can cut the material from different direction.
2. The PCD or PCBN external turning tool can realize fast speed turning, hard material turning, and dry turning.
3. According to the need of our customers, we can design and manufacture the external turning tool with different specifications, by changing the sizes of the cutter arbor, rake angle, clearance angle, tool cutting edge angle, tool minor cutting edge angle, nose angle, cutting edge form and the width of the chamfering.

Application

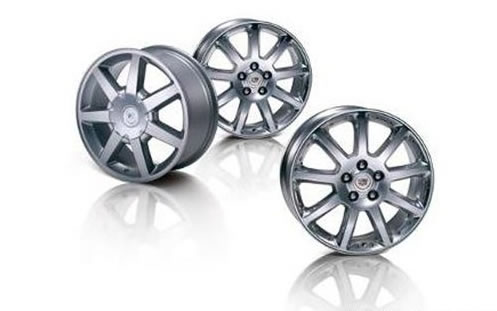

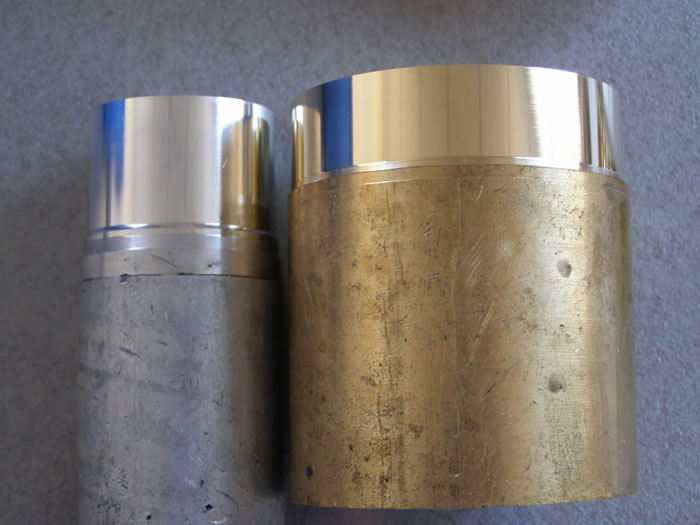

The PCD external turning tool is used for the external turning of copper, aluminum, copper alloy, aluminum alloy, tungsten carbide and nonmetal work pieces such as composite material.
The PCBN external turning tool is used for the external turning of hardened steel, hard cast iron, grey cast iron and iron series metal work pieces.

Technical Specifications

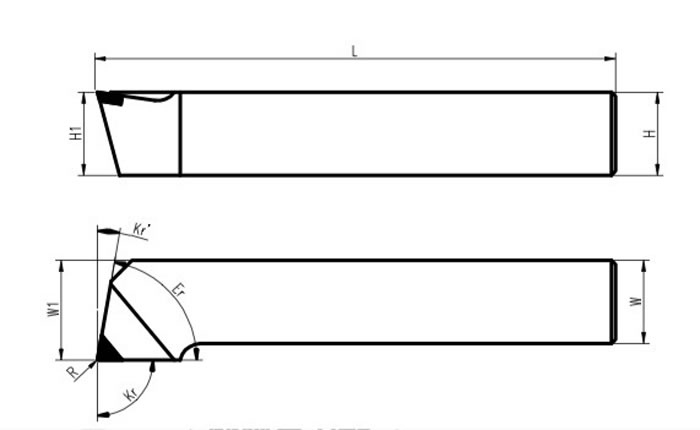

Drawing of PCD/PCBN External Turning Tool Dimension (mm)
Kr° W1 H W L Er° R
95 12 10 10 120 70 0.4
95 14 12 12 120 80 0.4
95 16 14 14 120 70 0.4
95 23 20 20 120 90 0.4

Material
The tool bit of the external turning tools uses PCBN or PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The cutter arbor uses high quality tungsten carbide and tool steel.
