PCD Wheel Hub Turning Tool

PCD Wheel Hub Turning Tool

Features
1. The service life of the PCD wheel hub turning tool is longer than that of an alloy cutting tool.
2. Our PCD wheel hub turning tool has a unique positioning table which can be used to change blades. The speed of changing blades can be improved and the blades can be positioned in the accurate place to guarantee the processing precision.
3. Our PCD wheel hub turning tool can be equipped with a cutter arbor of different brands.
4. We can manufacture welding the PCD wheel hub turning tool of various specifications according the need of customers.

Application

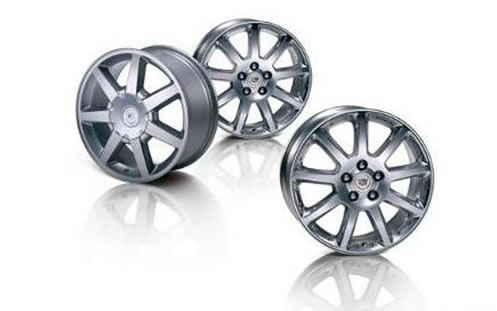

The PCD wheel hub turning tool is used for the external facing processing of aluminum alloy wheel hubs for cars.

Technical Specifications

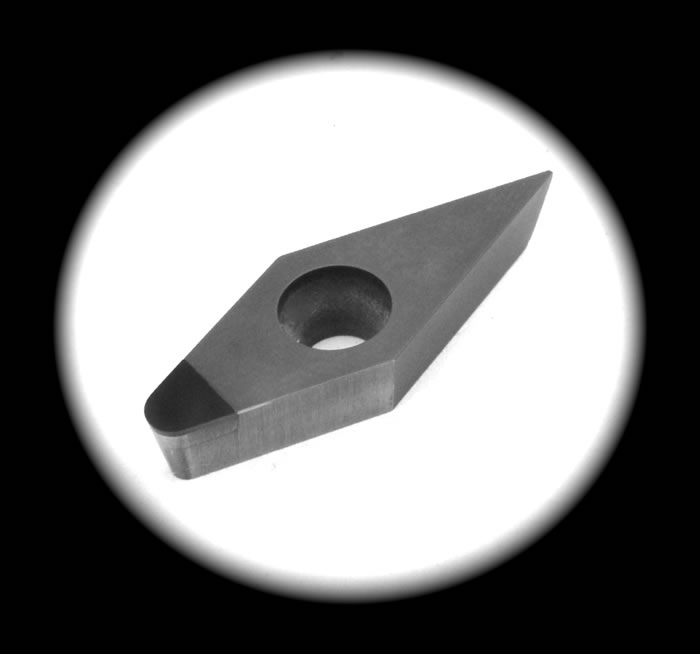

Specification of PCD Insert for Wheel Hub

Model Dimension (mm)
L C s d R
VCMW160408 16.6 9.525 4.76 Φ4 0.8
VCMW160410 16.6 9.525 4.76 Φ4 1.0
VCMW160411 16.6 9.525 4.76 Φ4 1.1
VCMW160412 16.6 9.525 4.76 Φ4 1.2

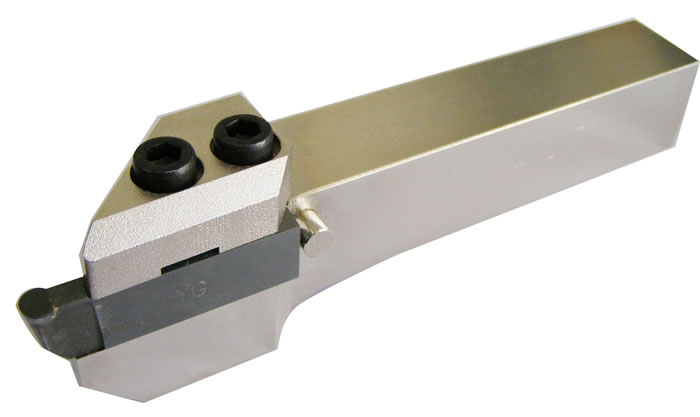

Specification of Tool Holder for Wheel Hub

R H W L
2 13.4 4.8 46.5
2.5 17 5.5 65
3 17 5.5 65
4 17 5.5 65
2 25 25 150
2.5 25 25 150
3 25 25 170
4 25 25 170

Material
The tool bit of the PCD wheel hub turning tools uses PCBN or PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The cutter arbor uses high quality tungsten carbide and tool steel.
