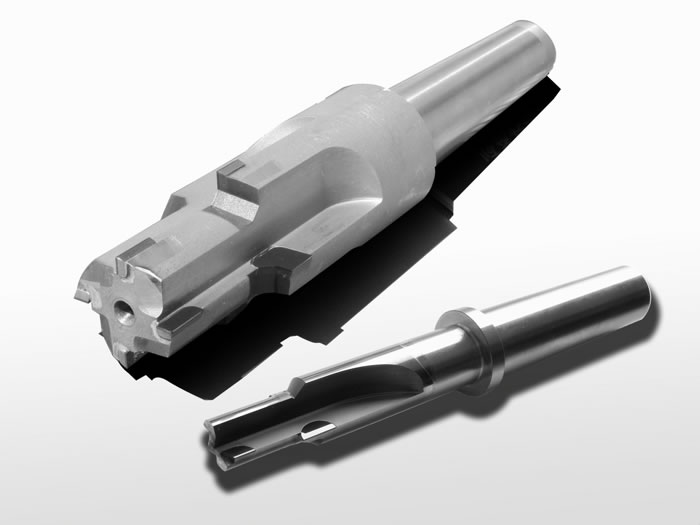

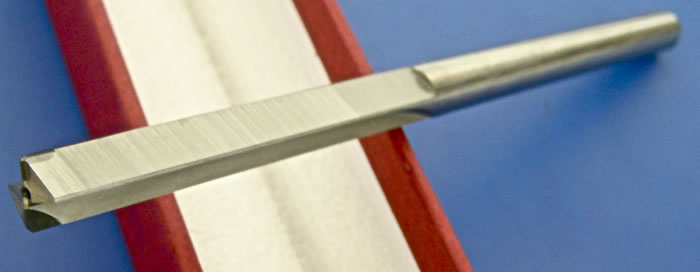

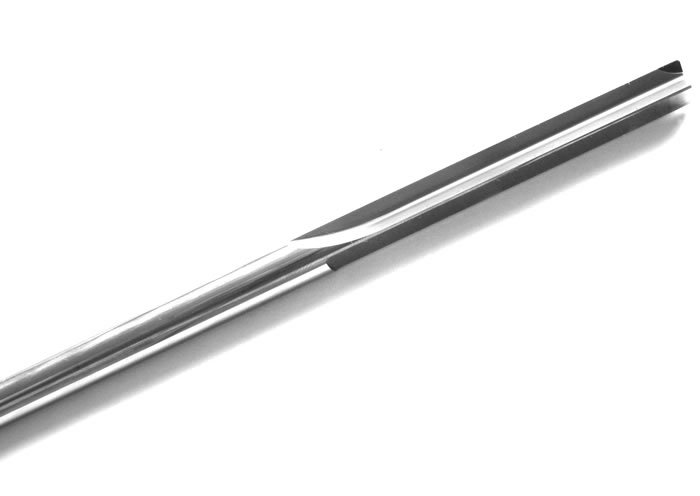

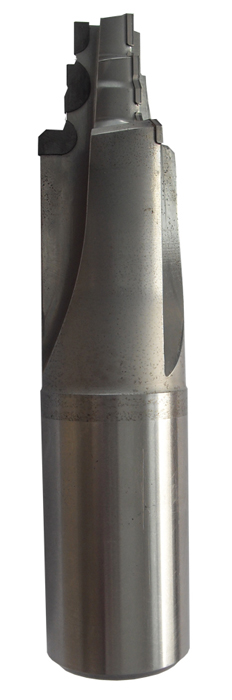

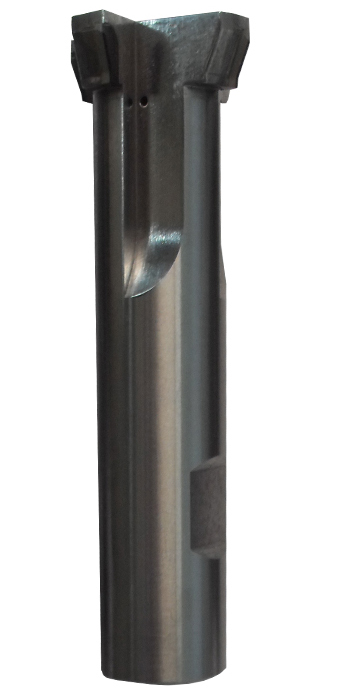

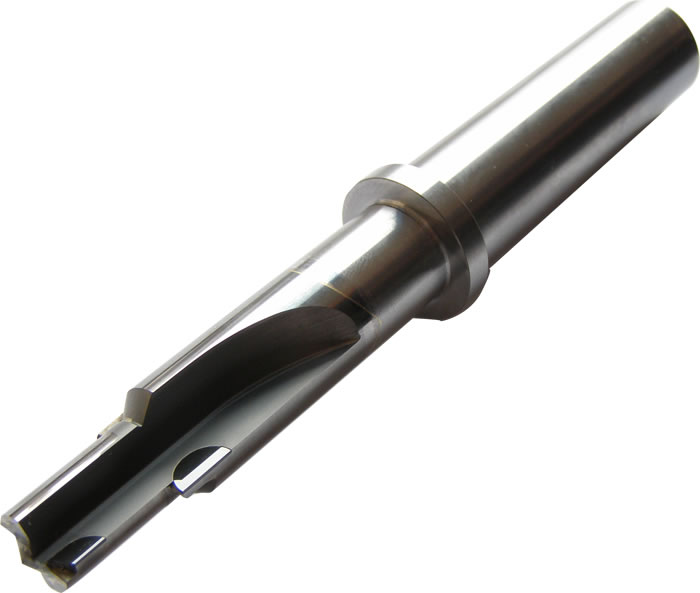

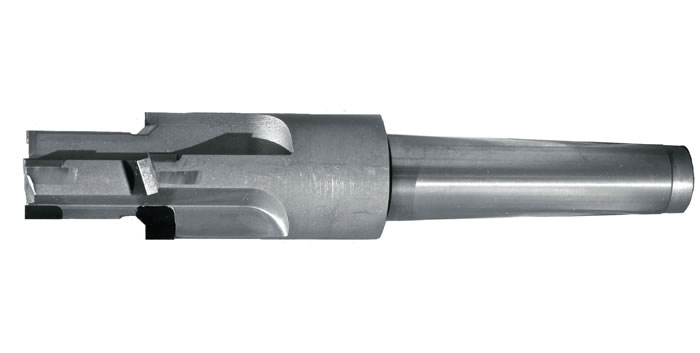

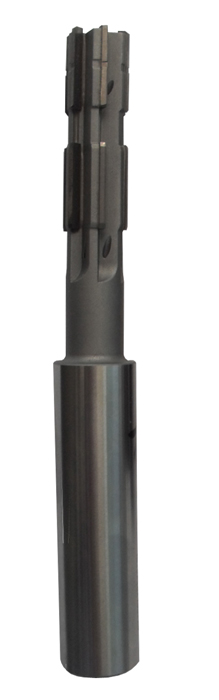

PCD Reamer

PCD Reamer

Description
The PCD blanks feature high hardness, high abrasive resistance, high thermal conductivity and strong toughness. The PCD reamer has advantages over the average tungsten carbide reamer.

Features
1. The PCD reamer features high processing precision and high processing efficiency.
2. The PCD reamer can realize high speed cutting and hard material cutting.
3. With the features of high abrasive resistance and thermal conductivity, PCD reamer has a long service life. Its service life is 10 to 20 times that of the average tungsten carbide reamer.

Application
The PCD reamer is used to precisely process work pieces of various material, such as copper, aluminum, copper alloy, aluminum alloy, tungsten carbide and composite material.

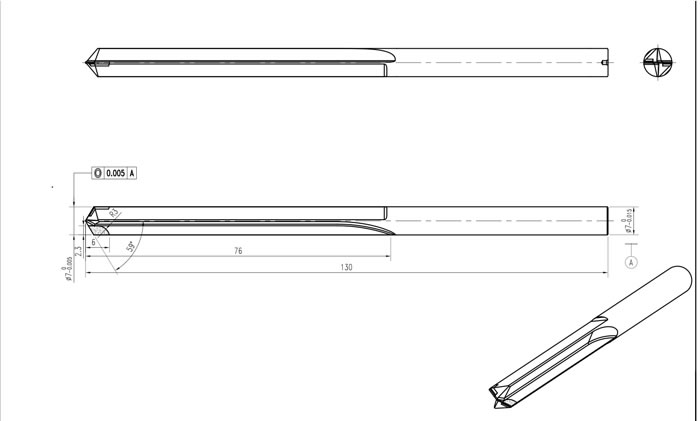

Technical Specifications

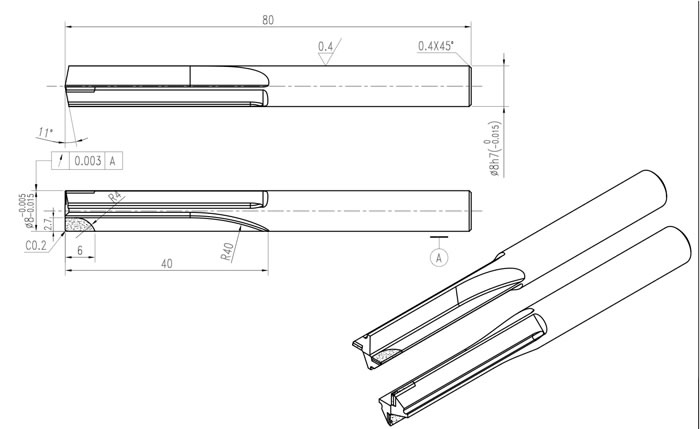

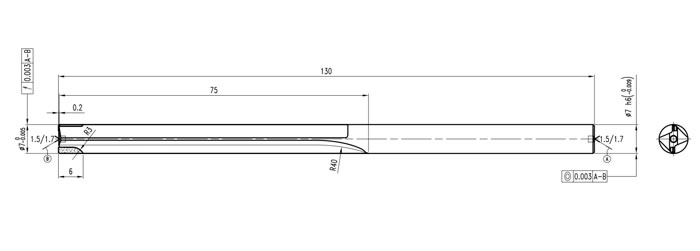

¢D (mm) L (mm) d (mm) L1 (mm) L2 (mm)
7 130 7 76 6
7 130 7 75 6
8 80 8 40 6

Material
The tool bit of the PCD reamers uses PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The body part uses high quality tungsten carbide and tool steel.
