PCD Boring Cutter, PCBN Boring Cutter

Home » Products » PCD/PCBN Cutting Tools » PCD/PCBN Boring Tools » PCD/PCBN Boring Cutters

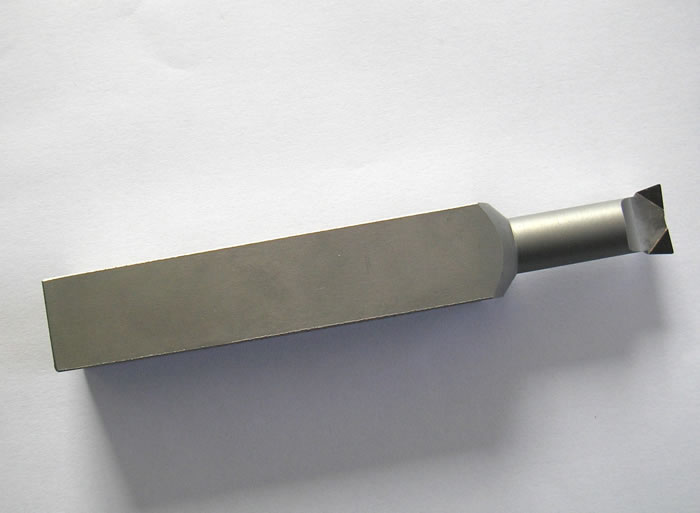

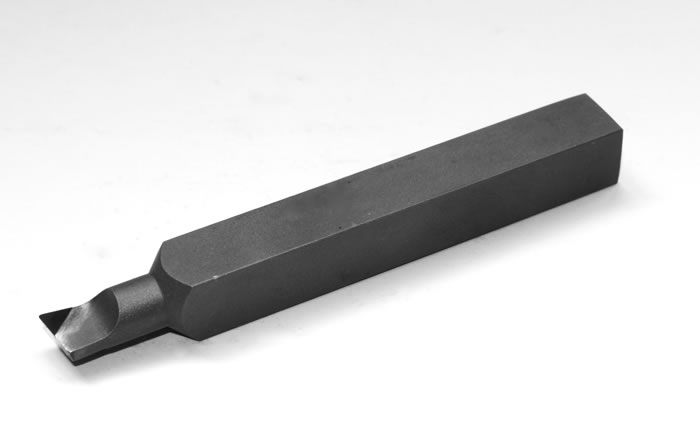

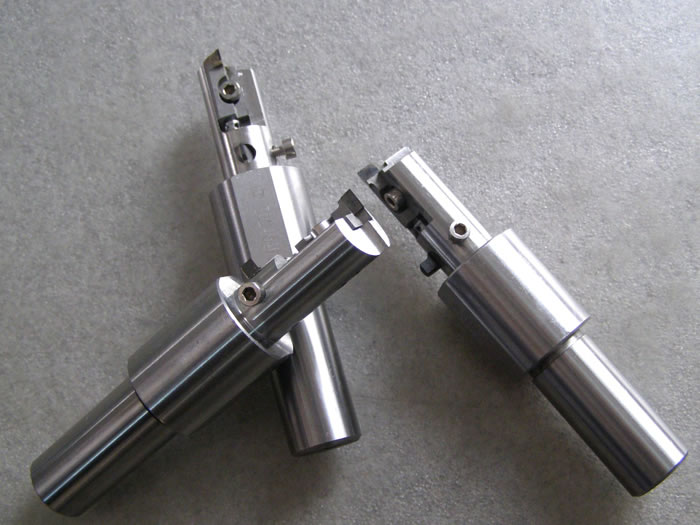

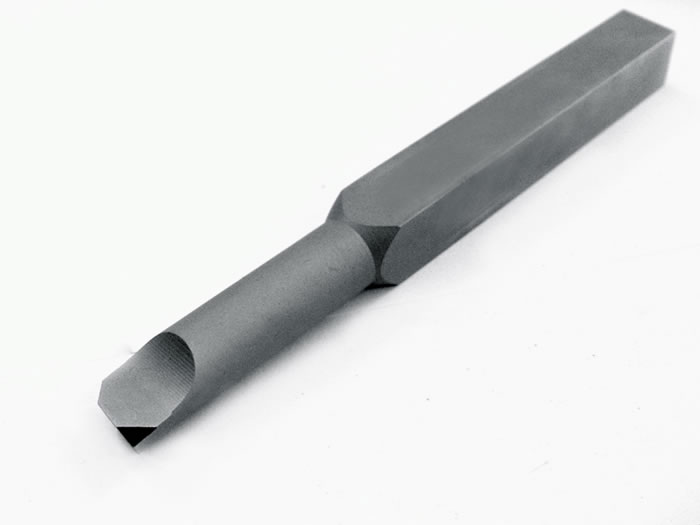

PCD Boring Cutter, PCBN Boring Cutter

Features
1. The welding PCD/PCBN boring cutter has good balance of performance and stability.
2. The welding PCD/PCBN boring cutter features good abrasive resistance and long service life.
3. The PCD/PCBN boring cutter can guarantee high processing precision.
4. The boring cutter has high work efficiency.
5. The welding PCD/PCBN boring cutter can be used repeatedly so that it can save your cost.
6. We can manufacture the PCD/PCBN boring cutters of various specifications according to the need of our customers.

Application
The PCD boring cutter applies to different materials including copper, aluminum, copper alloy, aluminum alloy, tungsten carbide and nonmetal materials. It can be used in the boring and precision processing of various products with different specifications, such as the processing of cast aluminum alloy pistons.
The PCBN boring cutter is used to bore and precisely process different materials, such as hardened steel, hard cast iron, grey cast iron, and iron series metal.

Technical Specifications

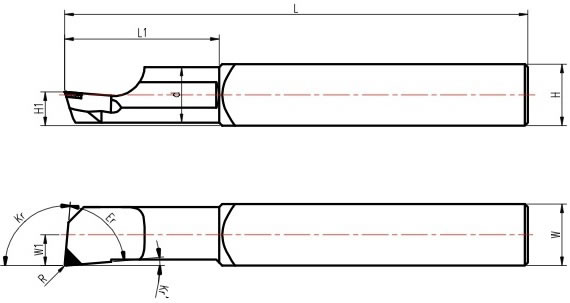

Drawing of PCD/PCBN Boring Tool Dimension (mm)
Kr° W1 H1 H W/D L d L1 Er° R
95 6 10 20 20 120 10 30 70 0.4
95 6 12.5 25 25 120 10 30 80 0.4
95 9.5 10 20 D20 120 16 30 70 0.4
95 9.5 10 20 D20 120 16 30 90 0.4

Material
The tool bit of the boring cutters uses PCBN or PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The cutter arbor uses high quality tungsten carbide and tool steel.
