Lapping and Polishing Machine

Home » Products » Cutting Machinery » Lapping and Polishing Machines
Lapping and Polishing Machine

Features
1. Our lapping and polishing machine has the advantages of high efficiency, smooth finish, and good polishing quality.
2. With high precision spindle, infinitely variable speed, pneumatic press and multistage packaging, the lapping and polishing machine can grind and polish the products with high processing quality.

Application
Our lapping and polishing machine is used for the grinding and polishing of diamonds, tungsten carbides, ceramics and gems.

Technical Parameters

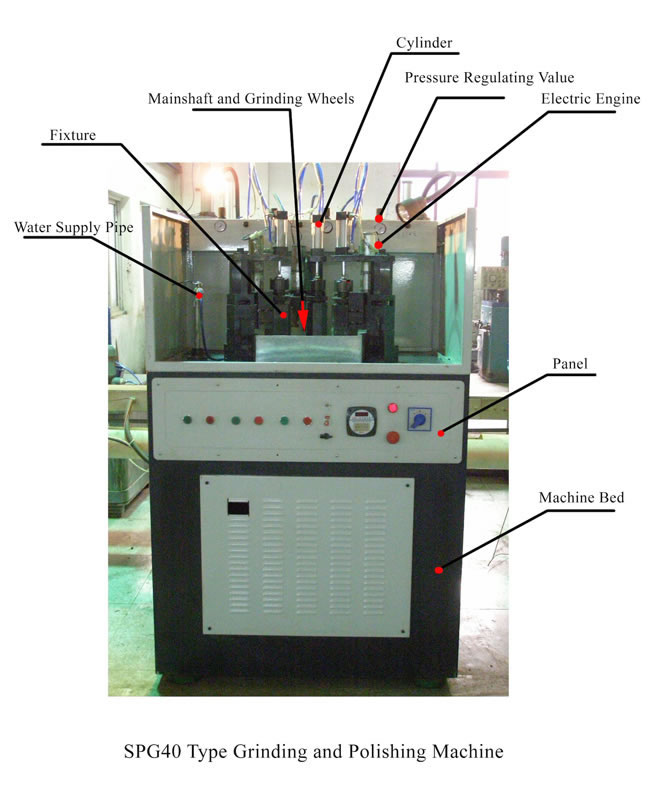

Specification of SPG40 Lapping and Polishing Machine
Dimension Electronic Spindle Motor 3-Phase Power Water Pump Work Light Grinding Wheel
Specification ADF170 -2Z/4 DWNEEREN DB-100 JL50D-1 300*75 *50*4(mm)
Quantity 1 3 1 1 1
Voltage 380V 24V 380V 24V ----
Power 4000W 30W 250W 50W ----
Pump Lift ---- ---- 4M ---- ----
Flow Volume ---- ---- 100 L/min ---- ----

Material
The lapping and polishing machine uses electronic spindle, 3-Phase power water pump and diamond grinding wheel.

Packaging
The lapping and polishing machine is packaged in a wooden box.

Service
We offer 12 hours of on line service.
