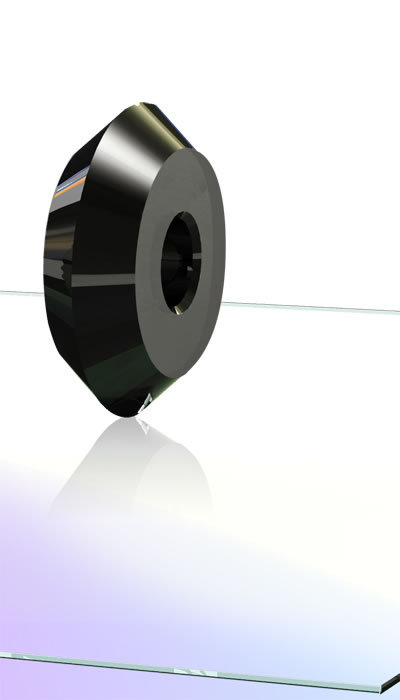

Standard Diamond Scribing Wheel

Standard Diamond Scribing Wheel

Description
Standard diamond scribing wheel uses high quality PCD material made by Element Six and Sumitomo. The wheel is made with unique high precision processing technology and the cutting edges of the scribing wheel are polished.

Features
1. The standard diamond scribing wheel has strong abrasive resistance.
2. The standard diamond scribing wheel has long service life.
3. The standard diamond scribing wheel has a sharp cutting edge and precise cutting angle. The wheel can cut glass with vertical and smooth sections and will not cause chips of glass during cutting process.
4. The friction coefficient between the wheel and the holders is very small so the holders can be protected from friction.
5. The standard diamond scribing wheel features smooth cutting and flawless cutting lines.
6. The standard diamond scribing wheel can cut the ITO conducting film and the glass at the same time when cutting touch screens. The scribing wheel can be used to cut touch screen that is made of tempered glass.

Application
The standard diamond scribing wheel is used in high end LCD production lines, LCD panels, substrate glass, and glass tube of touch screens.

Technical Specifications
Description Specification
OD(mm) ID(mm) T(mm) V(°)
Standard Diamond Scribing Wheels 1.20 0.50 0.40 60-163
2.00 0.80 0.65
2.50 0.80 0.65
3.00 0.80 0.65
3.20 1.20 1.00
4.00 1.30 1.00
5.00 1.40 1.10
6.00 1.50 1.10

Material
The standard diamond scribing wheel uses high quality PCD material made by Element Six and Sumitomo.

Packaging
The standard diamond scribing wheel is packaged in a plastic case.
