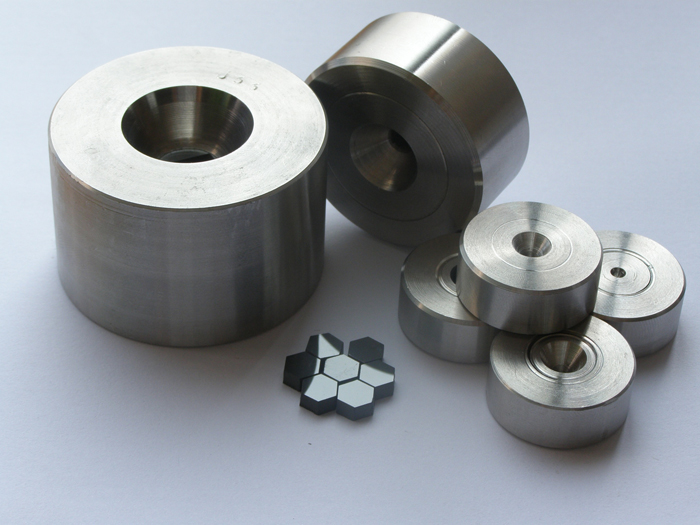

Diamond Die

Material
The diamond die uses high quality PCD and tungsten alloy.

Application
The diamond die is used to draw copper wire, aluminum wire, tungsten wire, molybdenum wire, stainless wire and coated steel wire.

Technical Specifications
ADDMA No. Size of Hole (mm) Standard Case (mm) Available Grain Size (μm)
5 10 20 30 40
D6 0.05~0.50 25× 8
D12 0.30~0.90 25×10
D15 0.50~1.50 25×12
D18 0.80~2.30 25×12
D21 1.60~3.20 30×15 ×
D24 2.60~4.20 30×15 ×
D27 3.80~5.50 55×24 ×
D30 4.80~7.60 55×24 ×

Packaging
The diamond die is packaged in a plastic case/carton.
