Carbide Boring Cutter

Home » Products » PCD/PCBN Cutting Tools » Diamond Engraving and Milling Tools » PCD/PCBN Roller Cutting Tools and Holders » Carbide Boring Cutters

Features
1. The carbide boring cutter features high processing precision.
2. The carbide boring cutter has a longer service life than the average tungsten carbide boring cutter.

Application

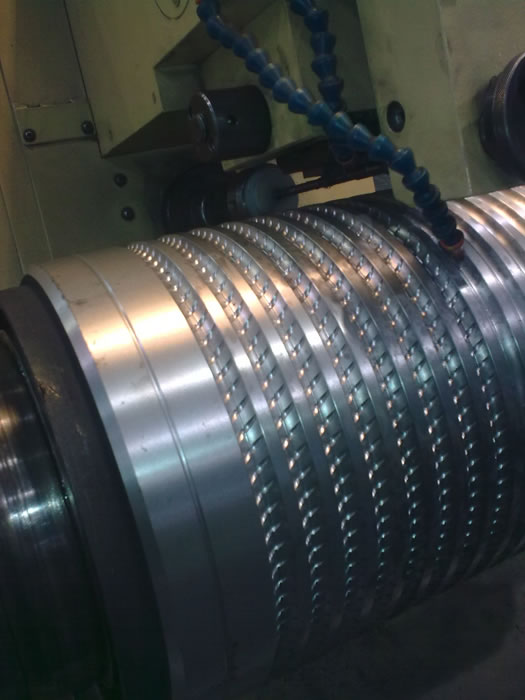

The carbide boring cutter is used to process tungsten carbide roller of various specifications.

Technical Specifications

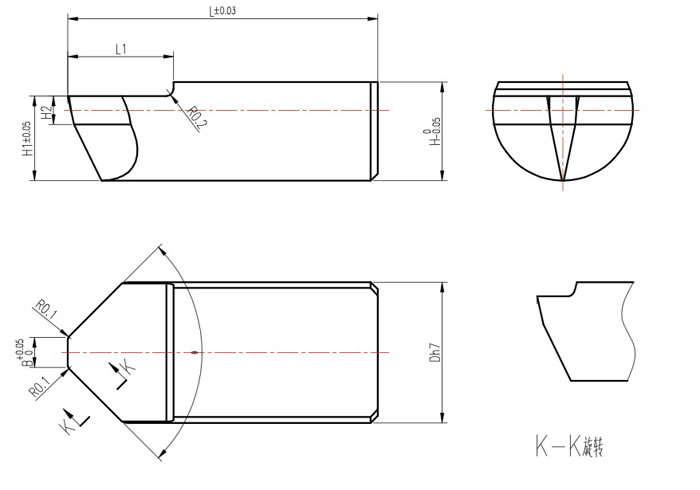

Drawing of Carbide Boring Cutter	Dimension (mm)
Drawing of Carbide Boring Cutter	D	b	H2	L	θ°
	Φ4.5	0.9	2.7	10.7	80
	Φ4	0.8	2.4	9.55	80
	Φ4	0.7	2.4	7.83	70/80
	Φ4	0.6	2.4	7.53	85
	Φ3.2	0.6	1.92	6.42	70/80
	Φ3.2	0.6	1.92	6.19	80
	Φ2.5	0.5	1.5	5.22	70/80
	Φ2.0	0.4	1.2	4.06	80

Material
The carbide boring cutter uses high quality tungsten carbide material.
