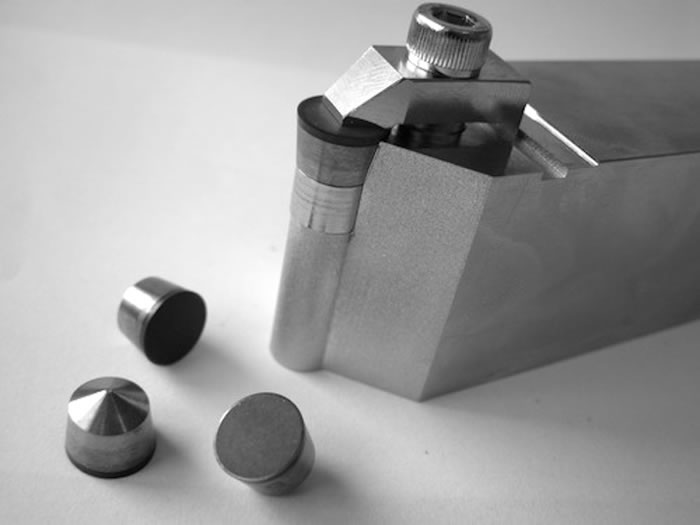

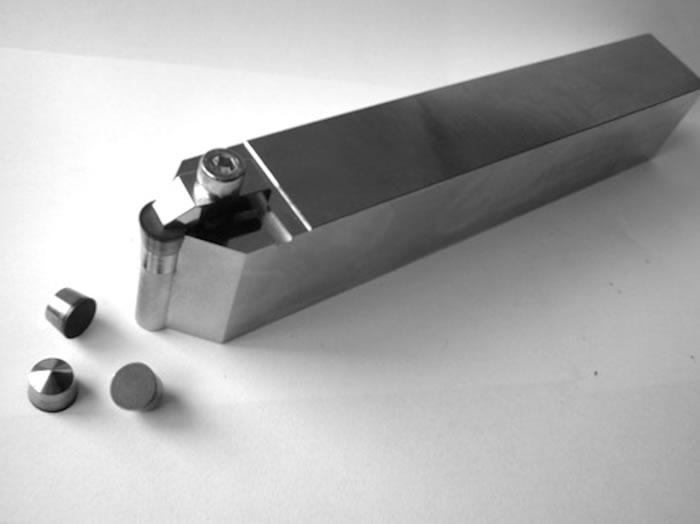

PCBN Insert and Roller Tool Holder

Features
1. Apart from ISO PCBN insert and Solid PCBN insert, we develop PCBN insert of various specifications.

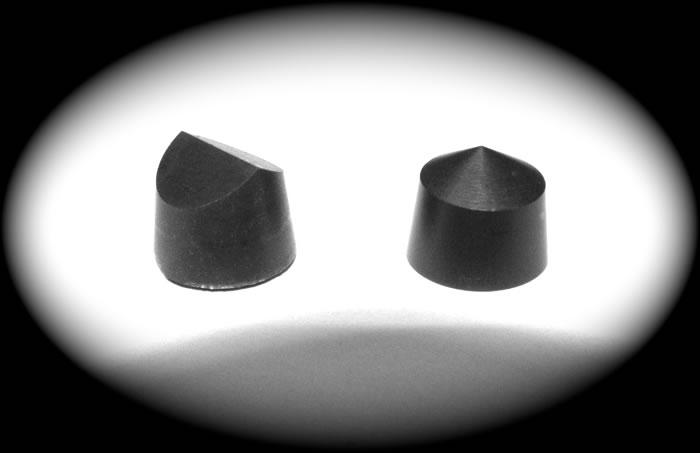

2. The design of cone shape or V shape bottom can facilitate the clamping of blade. It can guarantee the clamping precision and stability of the insert and tool holder.
3. The PCBN insert and roller tool holder replace grinding with turning. The work efficiency can be improved by 5 to 10 times.
4. The PCBN insert and roller tool holder can realize dry cutting without cutting fluid, so they can avoid environmental pollution.
5. The PCBN insert and roller tool holder feature high processing precision and a long service life.

Application

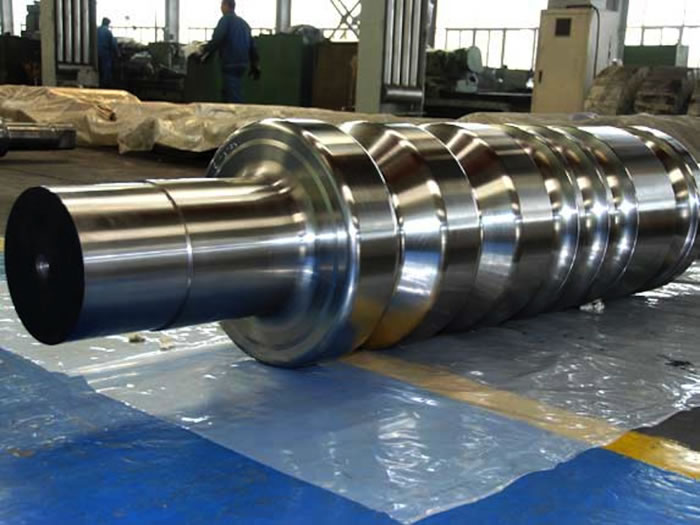

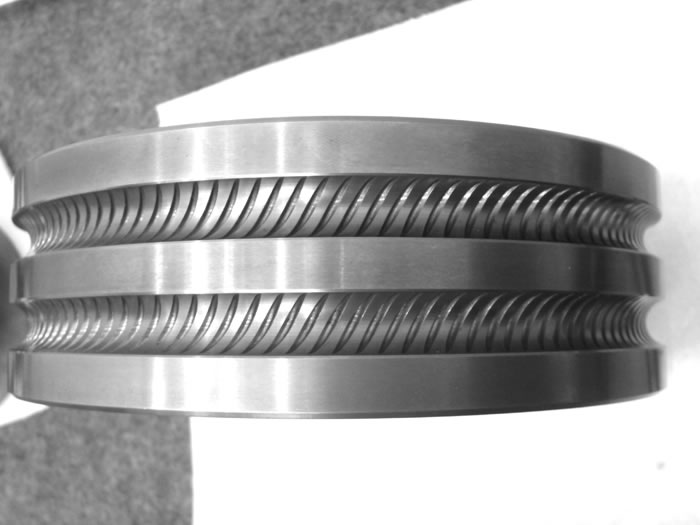

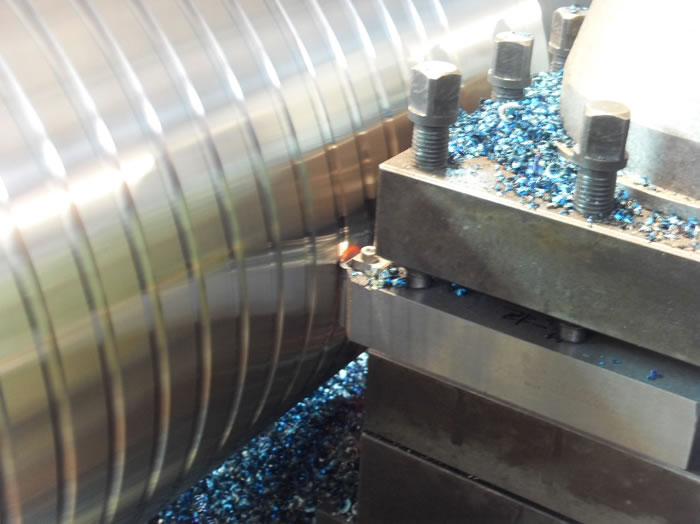

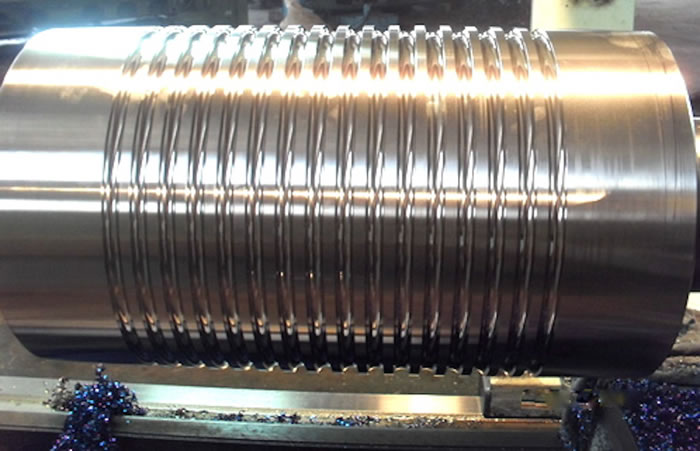

The PCBN insert and roller tool holder are used to process roller of various materials, including hardened steel, grey cast iron, cold hard cast iron and high temperature alloy.

Technical Specifications

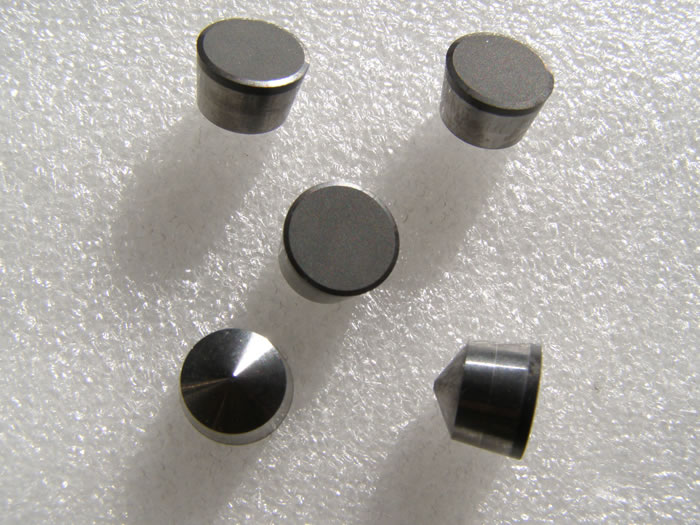

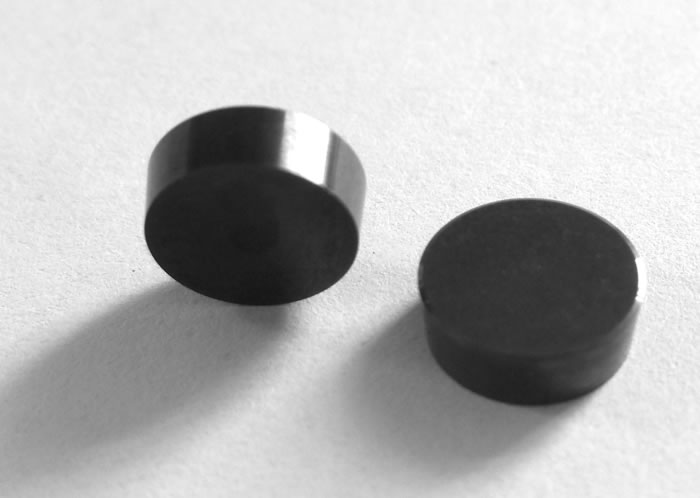

Specification of Solid PCBN Insert

Model Dimension (mm)
ISO ΦD S
RNMA251000 25.4 10
RNMA201000 20 10
RNMA200700 20 7.94
RNMA150700 15.875 7.94
RNMA12T600 12.7 6.80
RNMA120400 12.7 4.76
RNMA090400 9.525 4.76
RNMA080400 8.5 4.76
Model Dimension (mm)
ISO ΦD S r
RCMN12T600 12.7 6.8 0
RCMN150700 15.875 7.94 0
RCMN190700 19.05 7.94 0

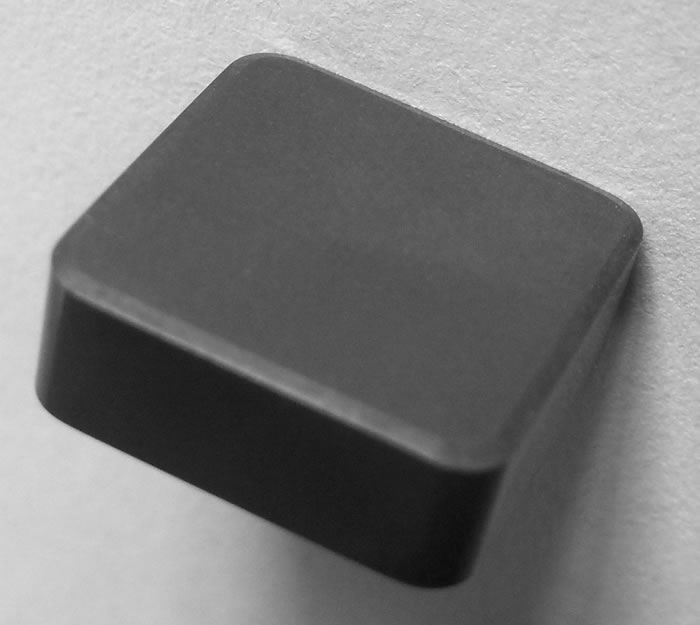

Model Dimension (mm)
ISO L ΦD S R
SNMN120408 12.7 12.7 4.76 0.8
SNMN12T612 12.7 12.7 6.8 1.2
SNMN150720 15.875 15.875 7.94 2.0
SNMN201020 20 20 10 2.0

Specification of Tools Holder for Roller Cutting Tool

Model h1=h2 b L1 L2 f a
CSXNR3232P12 32 32 170 36 36 --------
CSXNR3232P12 35 40 200 35 45 --------
CSXNR4040S15 40 40 250 40 45 --------
CSXNR5050T20 50 50 300 42 55 --------
CRDNN3232P12 32 32 170 33 22.35 --------
CRDNN4040S15 40 40 250 38 27.93 --------
CRDNN5050T20 40 40 300 45 30 --------
CRDNN3232P12 32 32 170 64 22.35 20
CRDNN4040S15 35 40 200 80 27.93 20
CRDNN5050T20 40 40 250 99 35 20
CRDNN3232P12 50 50 300 46 22.35 30
CRDNN4040S15 40 40 250 57 27.93 30
CRDNN5050T20 50 40 300 70 35 30

Specification of Tool Holder for Roller Cutter

Model h1=h2 b L1 L2 f a
CSXNR3232P12 32 32 170 36 36 --------
CSXNR3232P12 35 40 200 35 45 --------
CSXNR4040S15 40 40 250 40 45 --------
CSXNR5050T20 50 50 300 42 55 --------
CRDNN3232P12 32 32 170 33 22.35 --------
CRDNN4040S15 40 40 250 38 27.9 --------
CRDNN5050T20 40 40 300 45 30 --------
CRDNN3232P12 32 32 170 64 22.35 20°
CRDNN4040S15 35 40 200 80 27.93 20°
CRDNN5050T20 40 40 250 99 35 20°
CRDNN3232P12 50 50 300 46 22.35 30°
CRDNN4040S15 40 40 250 57 27.93 30°
CRDNN5050T20 50 50 300 70 35 30°

Material
The PCBN insert and roller tool holder use high quality tungsten carbide and tool steel.
